Name: 4060 Frameset
Brand: SCOR
SKU: 30005172
Price: 3199.0 CHF
Availability: InStock

SALSALITO

160mm / 140mm Federweg hinten, 29" Laufräder, Verschiedene Dämpferoptionen
Klicke auf ‘Kompatible Teile und Zubehör’ um einen Dämpfer hinzuzufügen.

CHF 3,199.00

inkl. MwSt.

SKU: 30005172

Size

Auf Lager
Inventar auf dem Weg

Kompatible Teile und Zubehör

Add a Shock

Lieferung an ein Fachgeschäft in deiner Nähe

Verfügbarkeit bei einem Fachhändler prüfen.

[{"id":48081811341644,"title":"S","option1":"S","option2":null,"option3":null,"sku":"30005172","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"4060 Frameset - S","public_title":"S","options":["S"],"price":319900,"weight":8000,"compare_at_price":0,"inventory_management":"shopify","barcode":"7630906510261","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":48081811472716,"title":"M","option1":"M","option2":null,"option3":null,"sku":"30005173","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"4060 Frameset - M","public_title":"M","options":["M"],"price":319900,"weight":8000,"compare_at_price":0,"inventory_management":"shopify","barcode":"7630906510254","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":48081811538252,"title":"L","option1":"L","option2":null,"option3":null,"sku":"30005174","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"4060 Frameset - L","public_title":"L","options":["L"],"price":319900,"weight":8000,"compare_at_price":0,"inventory_management":"shopify","barcode":"7630906510247","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":48081811603788,"title":"XL","option1":"XL","option2":null,"option3":null,"sku":"30005175","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"4060 Frameset - XL","public_title":"XL","options":["XL"],"price":319900,"weight":8000,"compare_at_price":0,"inventory_management":"shopify","barcode":"7630906510230","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

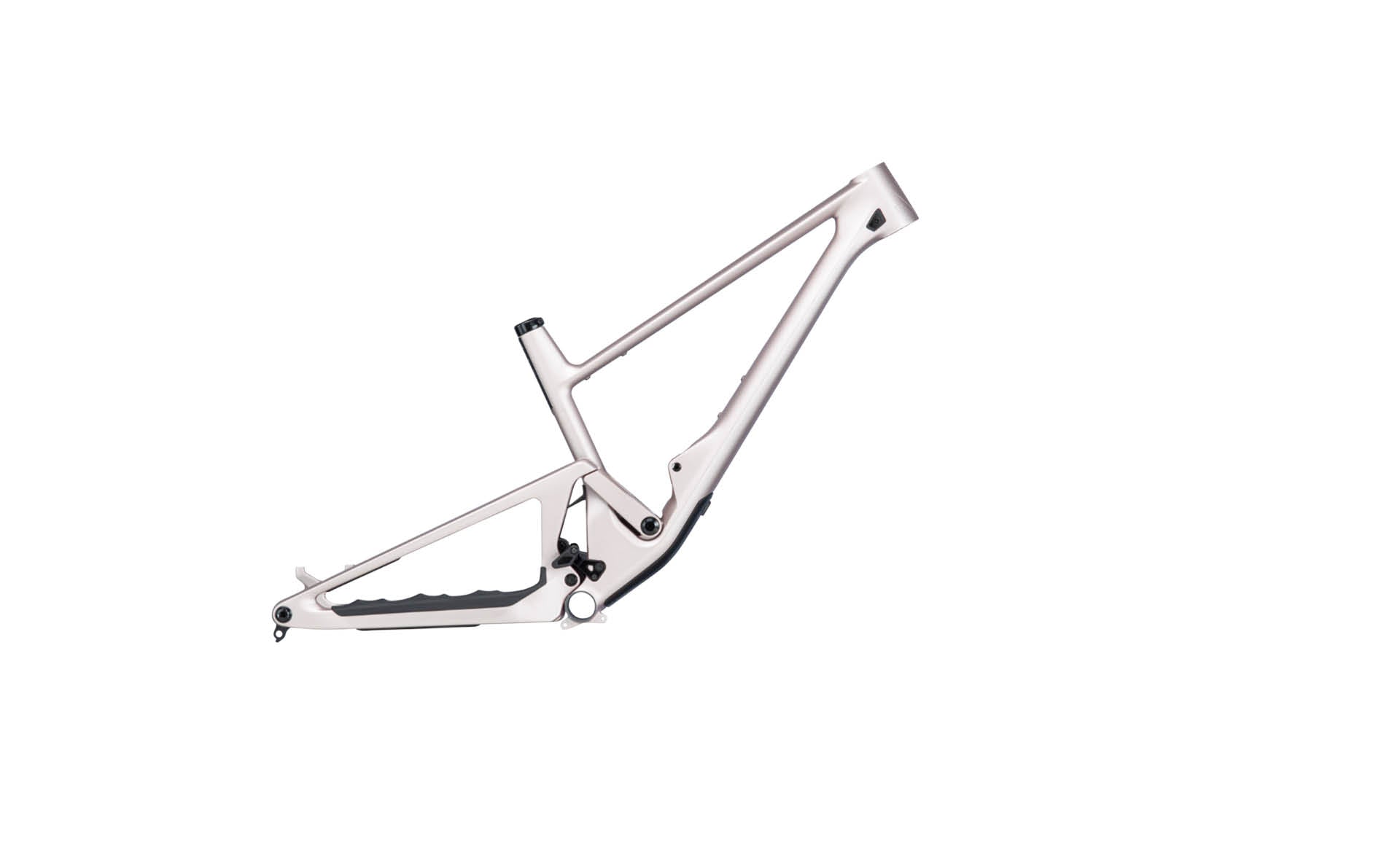

Hier ist das Herzstück für deinen Dream Build. Das Enduro-taugliche und Trail-leichte 4060 Frameset wird nur durch seine Vielseitigkeit übertroffen. Egal, ob du ein Bikepark-Shredder, All-Mountain-Entdecker oder Singletrail-Connaisseur bist – das 4060 Rahmenset bietet die Grundlage für ein Bike, das zu dir und deinem Fahrstil passt.

Technologie

Full Carbon Frame

Designed for feel, engineered with precision. Expertly laid up high-quality composites make for a frame that is light, stiff and strong enough to shrug off drops, bails and fails. Guided internal cable routing means its beauty is more than skin deep.

Options

One frame, two travel options. Choose from 160mm or 140mm of rear travel just by changing the rear shock, either way a flip-chip and stealth angle-adjust headset mean you won’t be compromising on geometry.

Superior Suspension

Our lower-link activated virtual pivot suspension design is supple off the top for all time grip with progressive support for when you go all too deep. Smart design keeps things stiff, low and air or coil shock compatible.

Stash Box

Mechanicals happen, but they don’t have to ruin your ride. With a spare Universal Derailleur Hanger (SRAM UDH) included and enough space for a multitool and tire plugs, the downtube stash box keeps your trailside essentials on hand. Ride on.

Technische Übersicht

Rahmenset

Federung

Dämpfer:
LT configuration: Fox Float X2 Factory | 205 x 65mm Trunnion | ST configuration: RockShox Super Deluxe Ultimate | 205 x 57.5mm Trunnion

Weitere Informationen

Espace pour les pneus:
Width: 64mm | Diameter: 750mm

Classification ASTM:
Level 4

Limite de poids du système:
120kg

Produktsicherheitsverordnung (GPSR):
Sicherheitshinweise GPSR (EU)
Verantwortliche Person gemäss GPSR (EU)

Size	S	M	L	XL
Rider Height	155 - 170	165 - 180	175 - 190	185 - 200
LT \| BB Drop (SLACK)	21	21	21	21
LT \| BB Drop (STEEP)	18	18	18	18
LT \| BB Height (SLACK)	348	348	348	348
LT \| BB Height (STEEP)	351	351	351	351
LT \| Chainstay	432	432	432	432
LT \| Fork Length	580	580	580	580
LT \| Fork Rake	44	44	44	44
LT \| Front Center (SLACK)	773	798	823	853
LT \| Front Center (STEEP)	761	785	810	840
LT \| Head Tube	87	99	115	127
LT \| HT Angle (SLACK)	63.8	63.8	63.8	63.8
LT \| HT Angle (STEEP)	65	65	65	65
LT \| Reach (SLACK)	435	459	485	515
LT \| Reach (STEEP)	431	456	481	511
LT \| Rider Height	155 - 170	165 - 180	175 - 190	185 - 200
LT \| Seat Tube	400	425	440	470
LT \| ST Angle @750mm Saddle Height (SLACK)	76.5	76.5	76.5	76.5
LT \| ST Angle @750mm Saddle Height (STEEP)	76	76	76	76
LT \| ST Angle Actual (SLACK)	69	69	69	69
LT \| ST Angle Actual (STEEP)	68.5	68.5	68.5	68.5
LT \| ST Angle Effective (SLACK)	77.9	77.9	77.9	77.9
LT \| ST Angle Effective (STEEP)	77.4	77.4	77.4	77.4
LT \| Stack (SLACK)	601	612	626	637
LT \| Stack (STEEP)	603	615	629	640
LT \| Stand Over Height (80 in Front of BB)	759	771	775	791
LT \| Stand Over Height (Lowest Point)	722	731	739	749
LT \| Top Tube (SLACK)	562	590	621	655
LT \| Top Tube (STEEP)	564	592	623	657
LT \| Wheelbase (SLACK)	1206	1230	1255	1285
LT \| Wheelbase (STEEP)	1193	1217	1242	1272
ST \| BB Drop (SLACK)	31	31	31	31
ST \| BB Drop (STEEP)	29	29	29	29
ST \| BB Height (STACK)	338	338	338	338
ST \| BB Height (STEEP)	340	340	340	340
ST \| Chainstay	433	433	433	433
ST \| Fork Length	560	560	560	560
ST \| Fork Rake	44	44	44	44
ST \| Front Center (SLACK)	765	790	815	845
ST \| Front Center (STEEP)	752	777	802	832
ST \| Head Tube	87	99	115	127
ST \| HT Angle (SLACK)	64.5	64.5	64.5	64.5
ST \| HT Angle (STEEP)	65.5	65.5	65.5	65.5
ST \| Reach (SLACK)	440	465	490	520
ST \| Reach (STEEP)	436	461	485	516
ST \| Rider Height	155 - 170	165 - 180	175 - 190	185 - 200
ST \| Seat Tube	400	425	440	470
ST \| ST Angle @750mm Saddle Height (SLACK)	77	77	77	77
ST \| ST Angle @750mm Saddle Height (STEEP)	76.5	76.5	76.5	76.5
ST \| ST Angle Actual (SLACK)	69.4	69.4	69.4	69.4
ST \| ST Angle Actual (STEEP)	69	69	69	69
ST \| ST Angle Effective (SLACK)	78.5	78.5	78.5	78.5
ST \| ST Angle Effective (STEEP)	78	78	78	78
ST \| Stack (SLACK)	597	608	622	633
ST \| Stack (STEEP)	599	611	625	636
ST \| Stand Over HeightÂ (80 in Front of BB)	752	764	768	784
ST \| Stand Over HeightÂ (Lowest Point)	714	723	731	741
ST \| Top Tube (SLACK)	560	589	620	654
ST \| Top Tube (STEEP)	561	590	621	655
ST \| Wheelbase (SLACK)	1198	1223	1248	1278
ST \| Wheelbase (STEEP)	1185	1210	1235	1265
