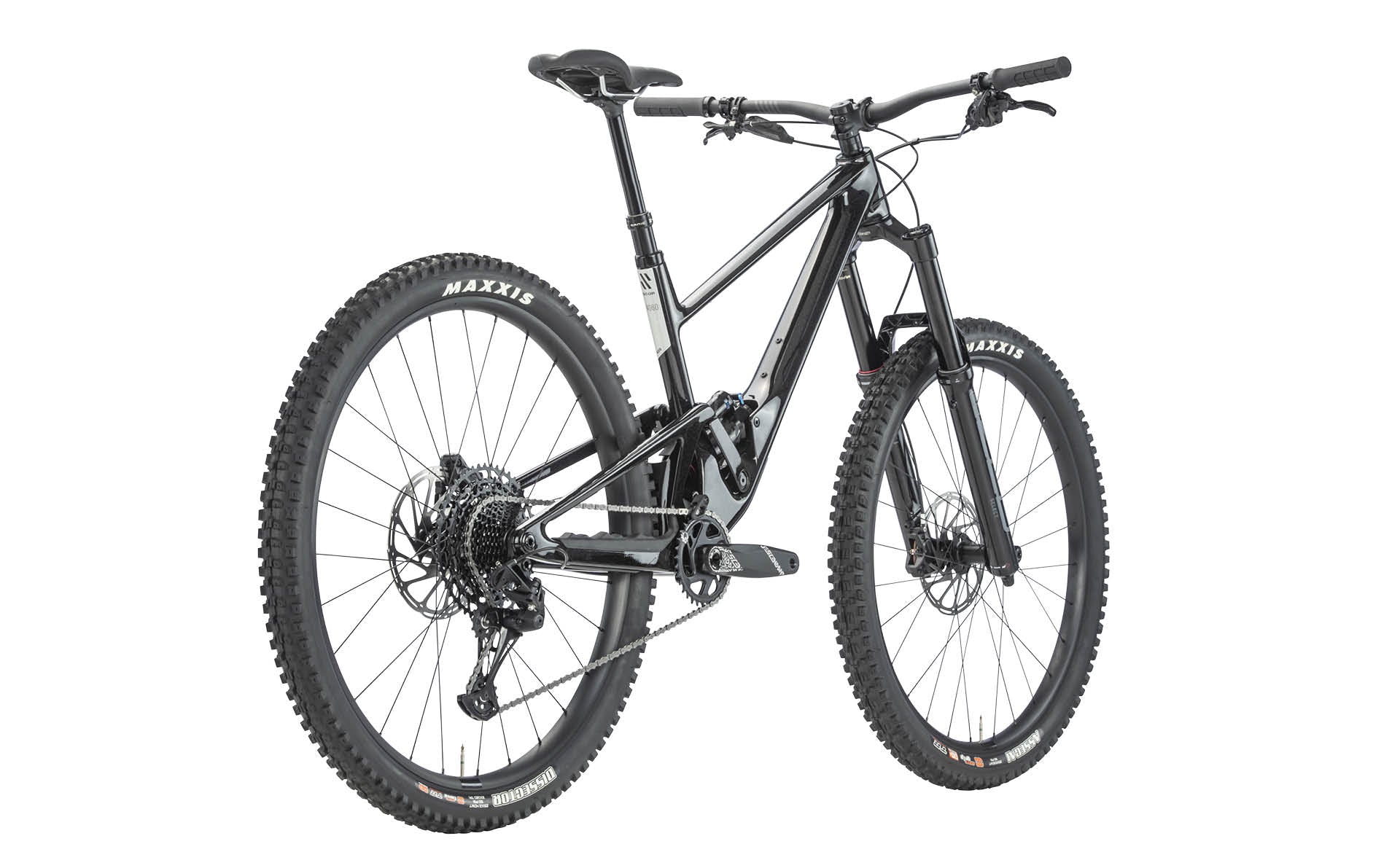

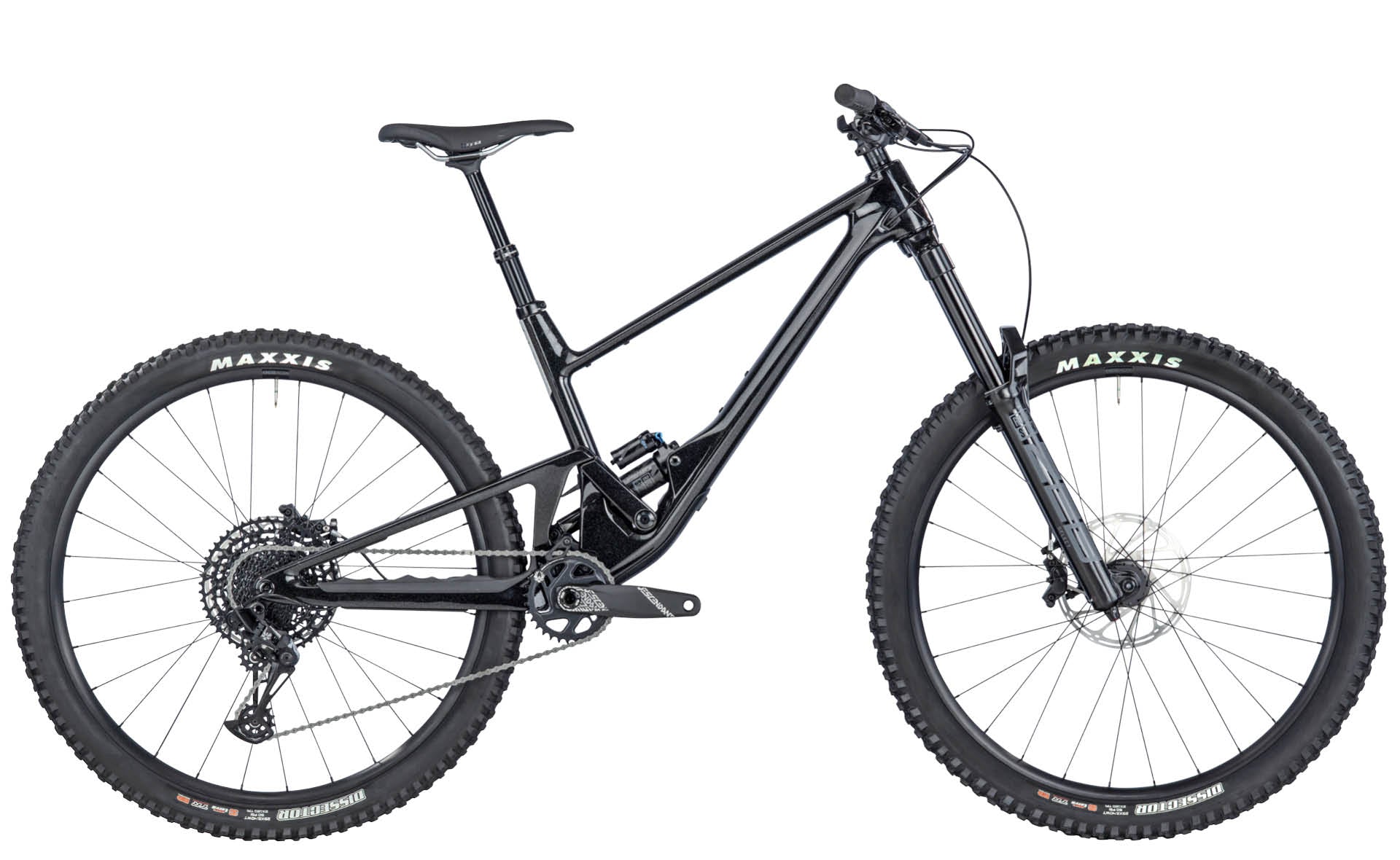

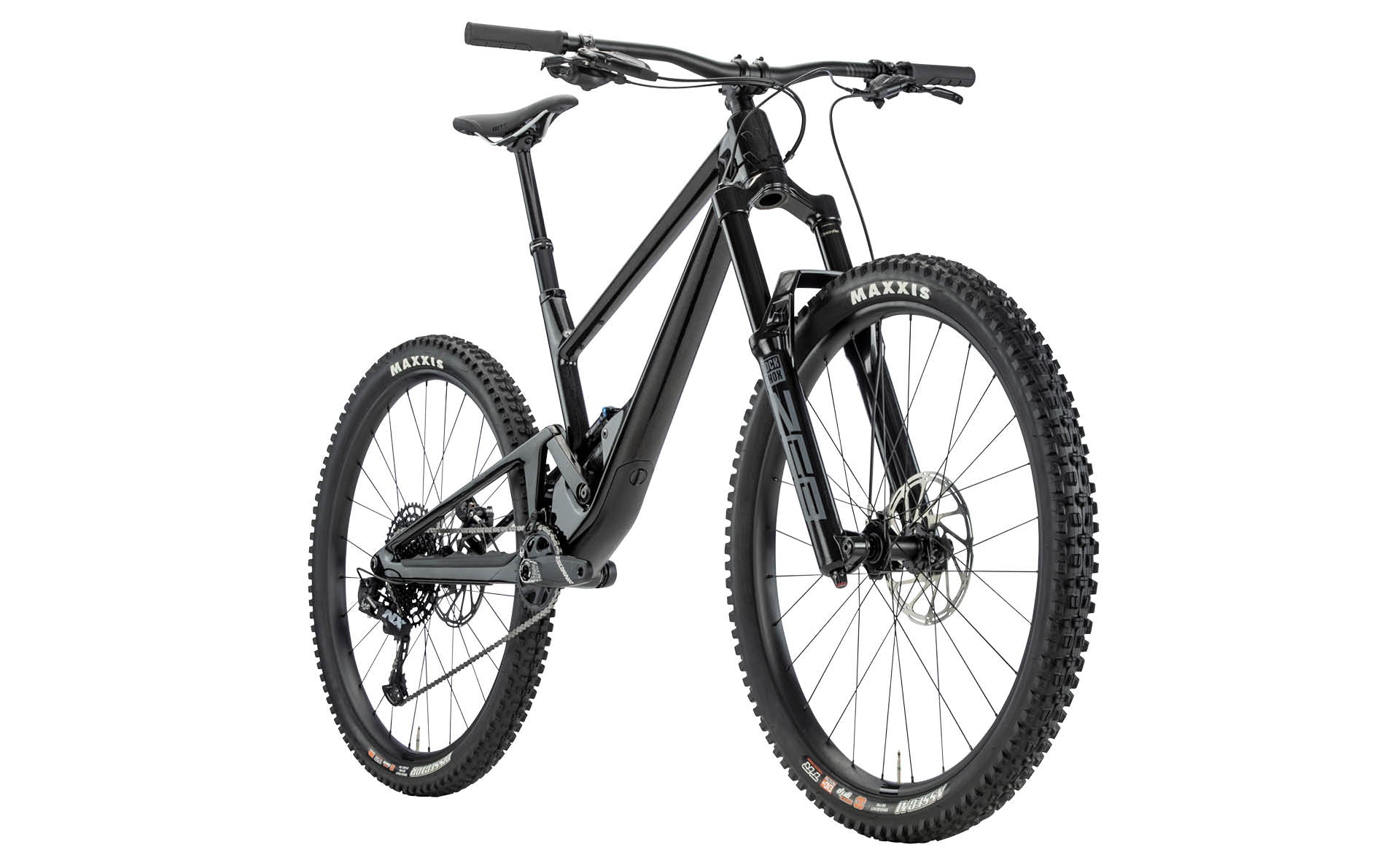

4060 LT NX

MIDNIGHT DISCO

160mm Rear / 170mm Front Travel, 29” Wheels
RockShox ZEB Select / RockShox Super Deluxe Select+ Suspension
SRAM NX Eagle Drivetrain, SRAM Code R Brakes

Regular priceCHF 4,999.00
CHF /
Tax included.

SKU: 30002915
Size
  • In stock, ready to ship
  • Inventory on the way

4060 LT NX

Parts & Accessories

  • Shipped to your local bike shop
  • FAQ
An enduro bike that squeezes the most out of every trail, the 4060 LT NX is pure concentrated fun. By using a gnar-loving full-carbon frame and pairing it with quality suspension components there’s no holding back on how hard you can send it. The bulletproof build kit means you’re good to go from the get-go and with everything you need and nothing you don’t, you can focus on having fun on the trail ahead.

Technology

Technical Details

Frameset

Frame:

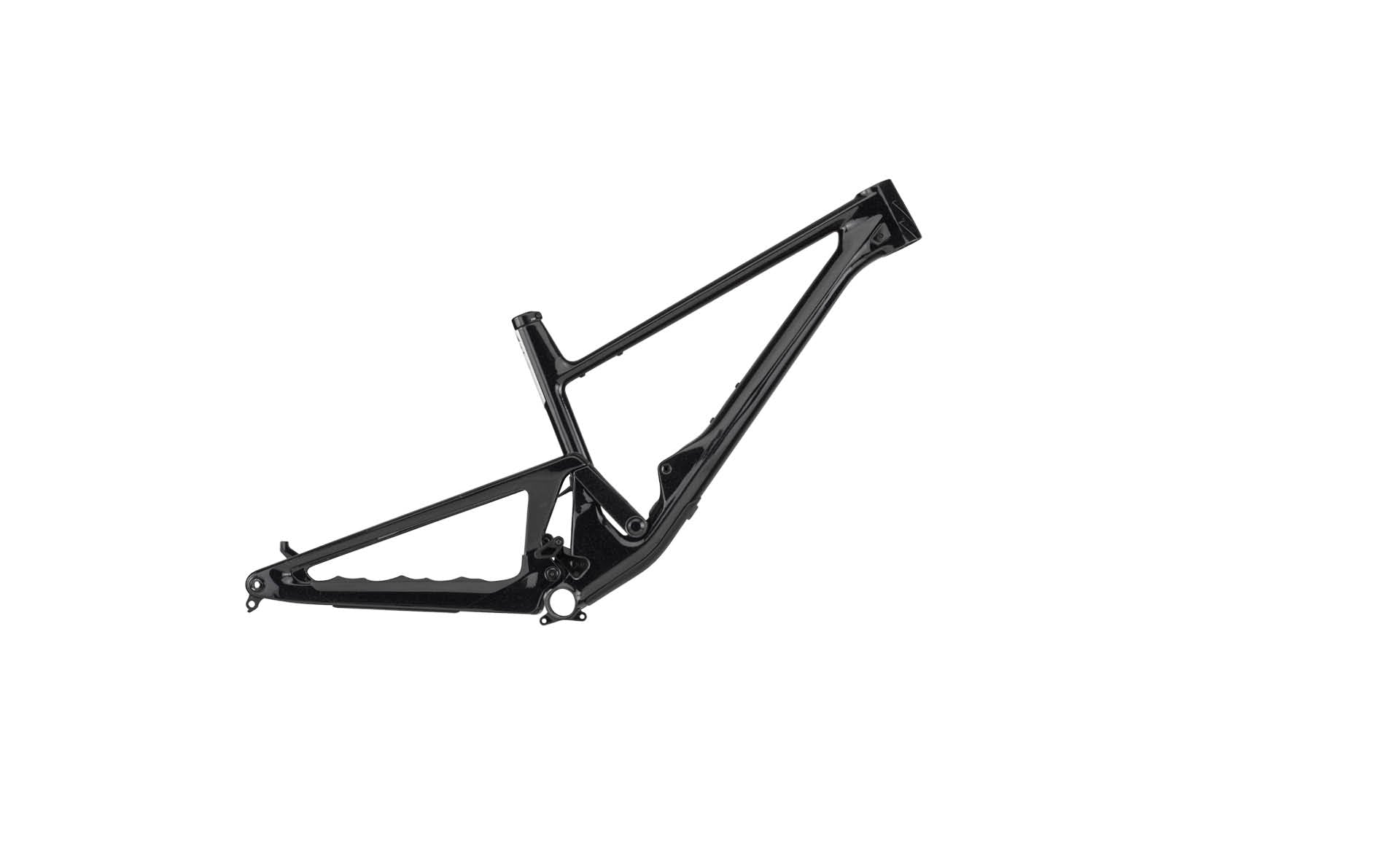

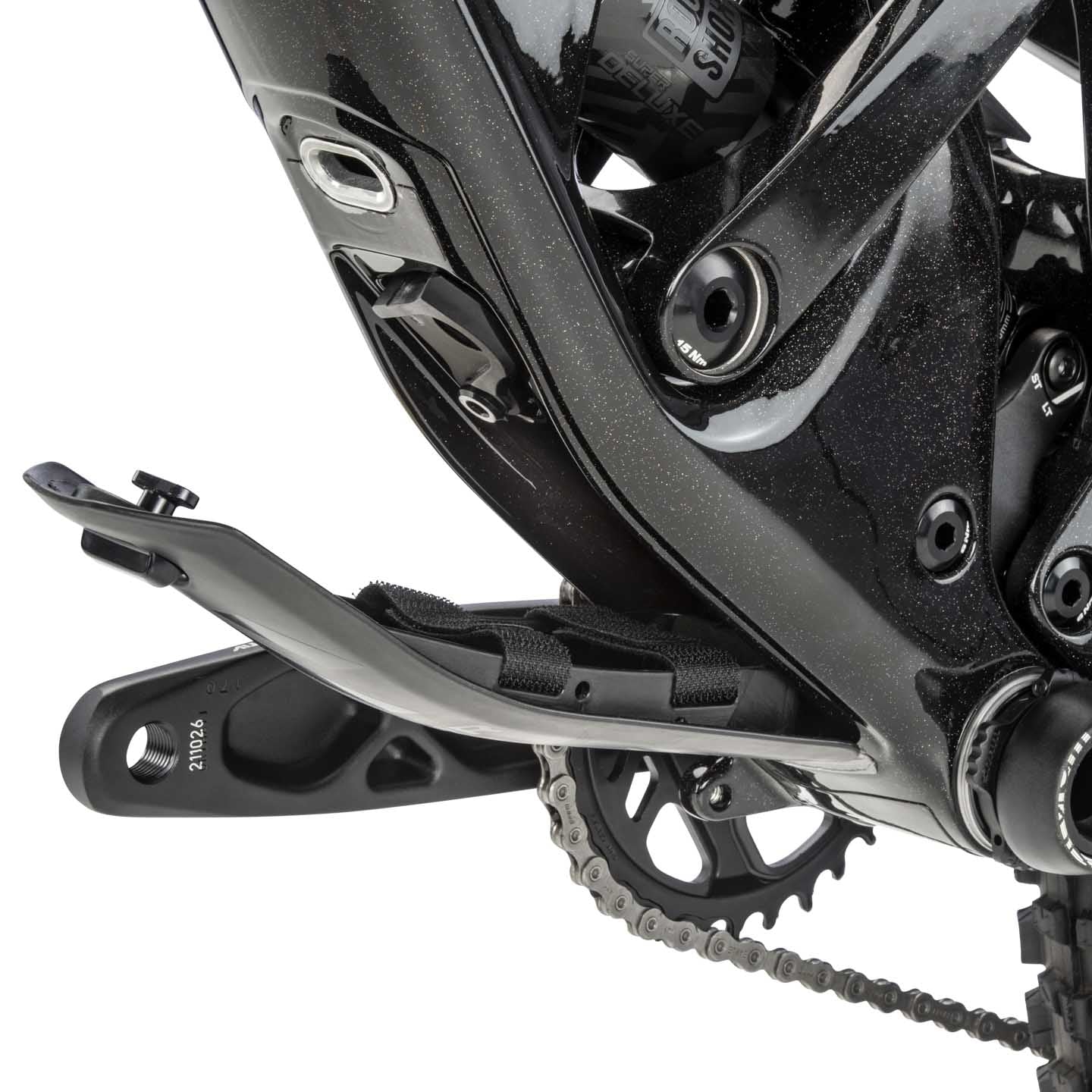

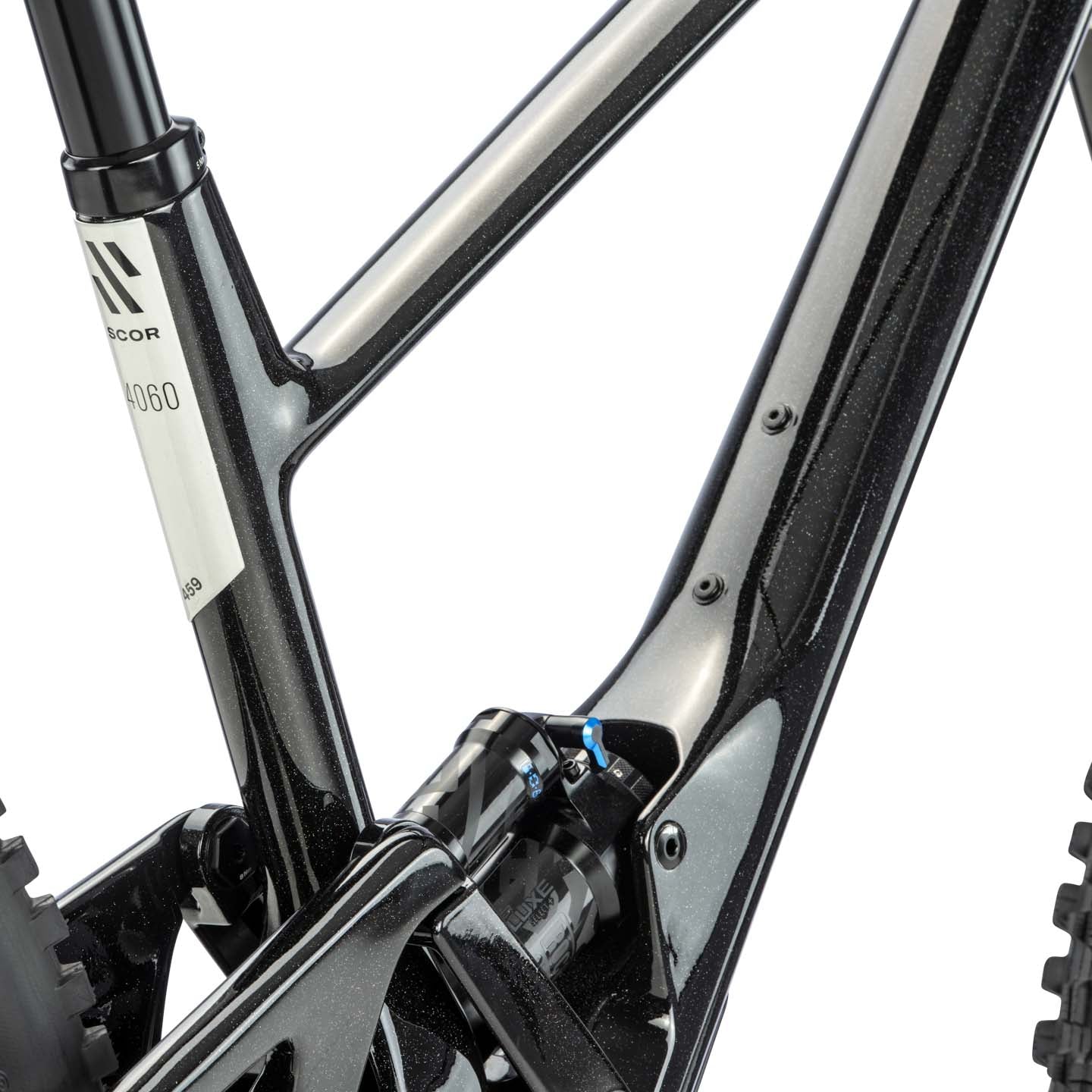

SCOR 4060 Full Carbon Frame | Lower-Link Driven Instant Center Linkage | 140 / 160mm Rear Wheel Travel | Fully Guided Internal Cable Routing | Stash Box | Boost 148 | SRAM UDH | Lower ISCG 05 Mount / Chainguide

Fork:
RockShox ZEB Select RC2 | 170mm Travel | 44mm Rake

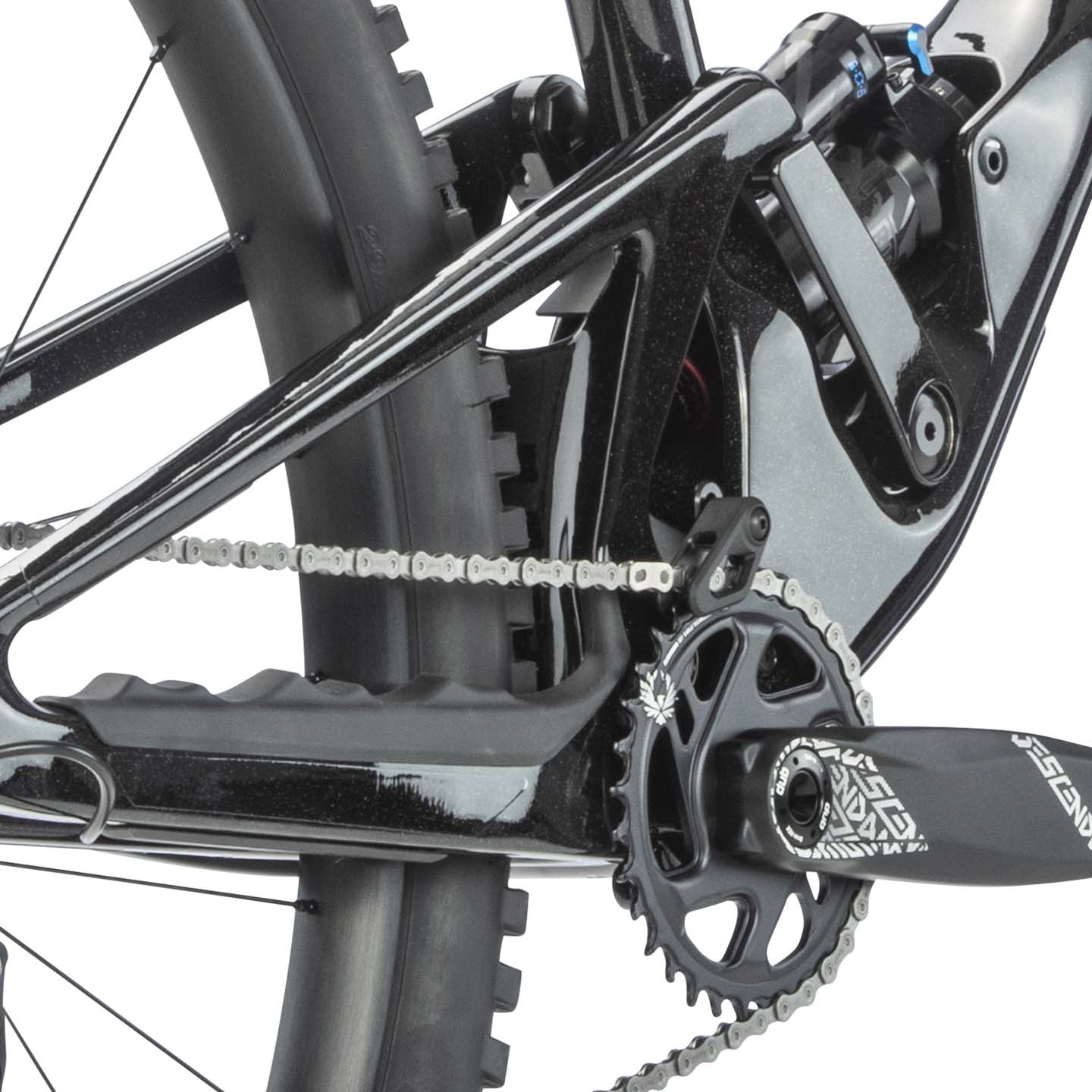

Suspension

Front Suspension:
RockShox ZEB Select RC2 | 170mm Travel | 44mm Rake

Rear Suspension:
RockShox Super Deluxe Select+ RT | 205 x 65mm Trunnion

Cockpit

Stem:
SCOR Alloy Stem | 31.8mm Bar Bore | 35 mm Length | 0° Angle

Handlebar:
SCOR Alloy Bar | 31.8mm Clamp | 800mm Wide | 20mm Rise | 5° Upsweep | 9° Backsweep

Grips:
VP VPG-125A

Seat

Seatpost:
X-Fusion Manic | S 125mm | M 150mm | L / XL 170mm Travel

Saddle:
WTB Silverado Steel SL | Medium

Drivetrain

Crankset:
SRAM Descendant 6K Eagle | 170 mm Length

Chainrings:
SRAM NX Eaglerings

Cassette:
SRAM NX PG-1230 Eagle

Cassette Size:
11-50T

Chain:
SRAM NX Eagle

Rear Derailleur:
SRAM NX Eagle

Shifters:
SRAM NX Eagle Trigger

Gears:
1 x 12

Bottom Bracket:
DUB Interface

Brakes

Brake Levers / Calipers:
SRAM Code R

Rotors:
SRAM Centerline | 6-Bolt

Rotor Size (F/R):
200mm

Wheels

Rims:
XDH-130 EN | 28 Spokes | 6061-T6 Alloy | Welded Joint | 30mm Internal Width | Tubeless ready

Hubs (F/R):
XDH-130 EN | 28 Spokes | Sealed Cartridge Bearings

Tires:
Maxxis Assegai 29 x 2.5" 3C MaxxGrip Exo+ TR (F) | Maxxis Dissector 29 x 2.4" 3C MaxxTerra DD TR (R)

Tubeless Information:
Tubeless Ready Rims | Tubetype Tires

Additional Information

Tire Clearance:
Width: 64mm | Diameter: 750mm

ASTM Classification:
Level 4

System Weight Limit:
120kg

Size S M L XL
Rider Height 155 - 170 165 - 180 175 - 190 185 - 200
BB Drop (SLACK) 21 21 21 21
BB Drop (STEEP) 18 18 18 18
BB Height (SLACK) 348 348 348 348
BB Height (STEEP) 351 351 351 351
Chainstay 432 432 432 432
Fork Length 580 580 580 580
Fork Rake 44 44 44 44
Front Center (SLACK) 773 798 823 853
Front Center (STEEP) 761 785 810 840
Head Tube 87 99 115 127
HT Angle (SLACK) 63.8 63.8 63.8 63.8
HT Angle (STEEP) 65 65 65 65
Reach (SLACK) 435 459 485 515
Reach (STEEP) 431 456 481 511
Seat Tube 400 425 440 470
ST Angle @750mm Saddle Height (SLACK) 76.5 76.5 76.5 76.5
ST Angle @750mm Saddle Height (STEEP) 76 76 76 76
ST Angle Actual (SLACK) 69 69 69 69
ST Angle Actual (STEEP) 68.5 68.5 68.5 68.5
ST Angle Effective (SLACK) 77.9 77.9 77.9 77.9
ST Angle Effective (STEEP) 77.4 77.4 77.4 77.4
Stack (SLACK) 601 612 626 637
Stack (STEEP) 603 615 629 640
Stand Over Height (80 in Front of BB) 759 771 775 791
Stand Over Height (Lowest Point) 722 731 739 749
Top Tube (SLACK) 562 590 621 655
Top Tube (STEEP) 564 592 623 657
Wheelbase (SLACK) 1206 1230 1255 1285
Wheelbase (STEEP) 1193 1217 1242 1272
