Name: 4060 LT NX
Brand: SCOR
SKU: 30005156
Price: 4299.0 CHF
Availability: InStock

4060 LT NX | SCOR | bikes | Mountain, Mountain | Enduro

Powder Rose

160mm Rear / 170mm Front Travel, 29” Wheels
RockShox ZEB Select / RockShox Super Deluxe Select+ Suspension
SRAM NX Eagle Drivetrain, SRAM Code R Brakes

CHF 4,999.00 CHF 4,299.00

Tax included.

SKU: 30005156

Size

In stock, ready to ship
Inventory on the way

Compatible Parts & Accessories

Add a Shock

Shipped to your local bike shop

Check availability within our Retailer Network

[{"id":48081555128652,"title":"S","option1":"S","option2":null,"option3":null,"sku":"30005156","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"4060 LT NX - S","public_title":"S","options":["S"],"price":429900,"weight":18000,"compare_at_price":499900,"inventory_management":"shopify","barcode":"7630906510025","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":48081555259724,"title":"M","option1":"M","option2":null,"option3":null,"sku":"30005157","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"4060 LT NX - M","public_title":"M","options":["M"],"price":429900,"weight":18000,"compare_at_price":499900,"inventory_management":"shopify","barcode":"7630906510018","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":48081555325260,"title":"L","option1":"L","option2":null,"option3":null,"sku":"30005158","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"4060 LT NX - L","public_title":"L","options":["L"],"price":429900,"weight":18000,"compare_at_price":499900,"inventory_management":"shopify","barcode":"7630906510001","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":48081555358028,"title":"XL","option1":"XL","option2":null,"option3":null,"sku":"30005159","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"4060 LT NX - XL","public_title":"XL","options":["XL"],"price":429900,"weight":18000,"compare_at_price":499900,"inventory_management":"shopify","barcode":"7630906509999","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

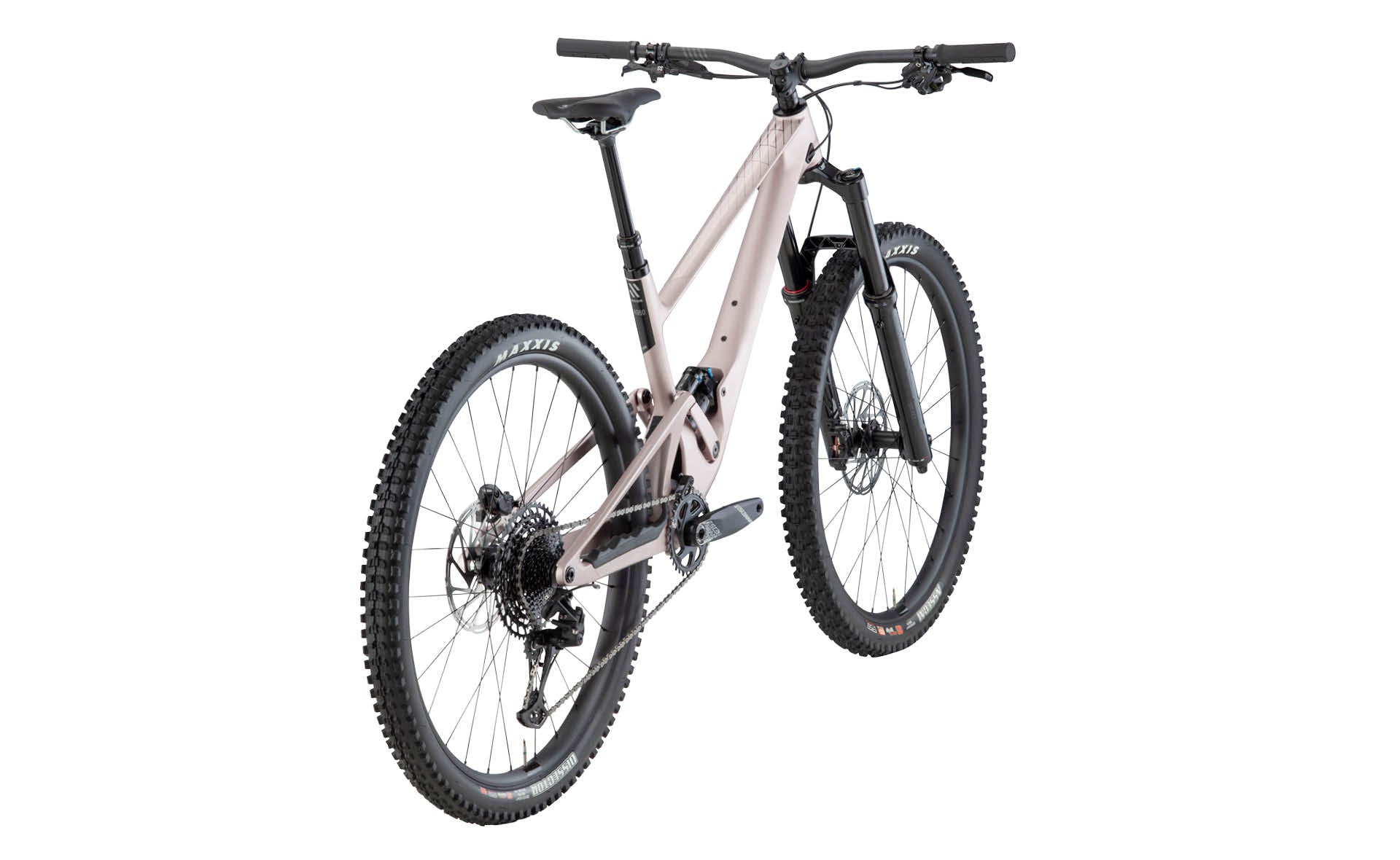

An enduro bike that squeezes the most out of every trail, the 4060 LT NX is pure concentrated fun. By using a gnar-loving full-carbon frame and pairing it with quality suspension components there’s no holding back on how hard you can send it. The bulletproof build kit means you’re good to go from the get-go and with everything you need and nothing you don’t, you can focus on having fun on the trail ahead.

Technology

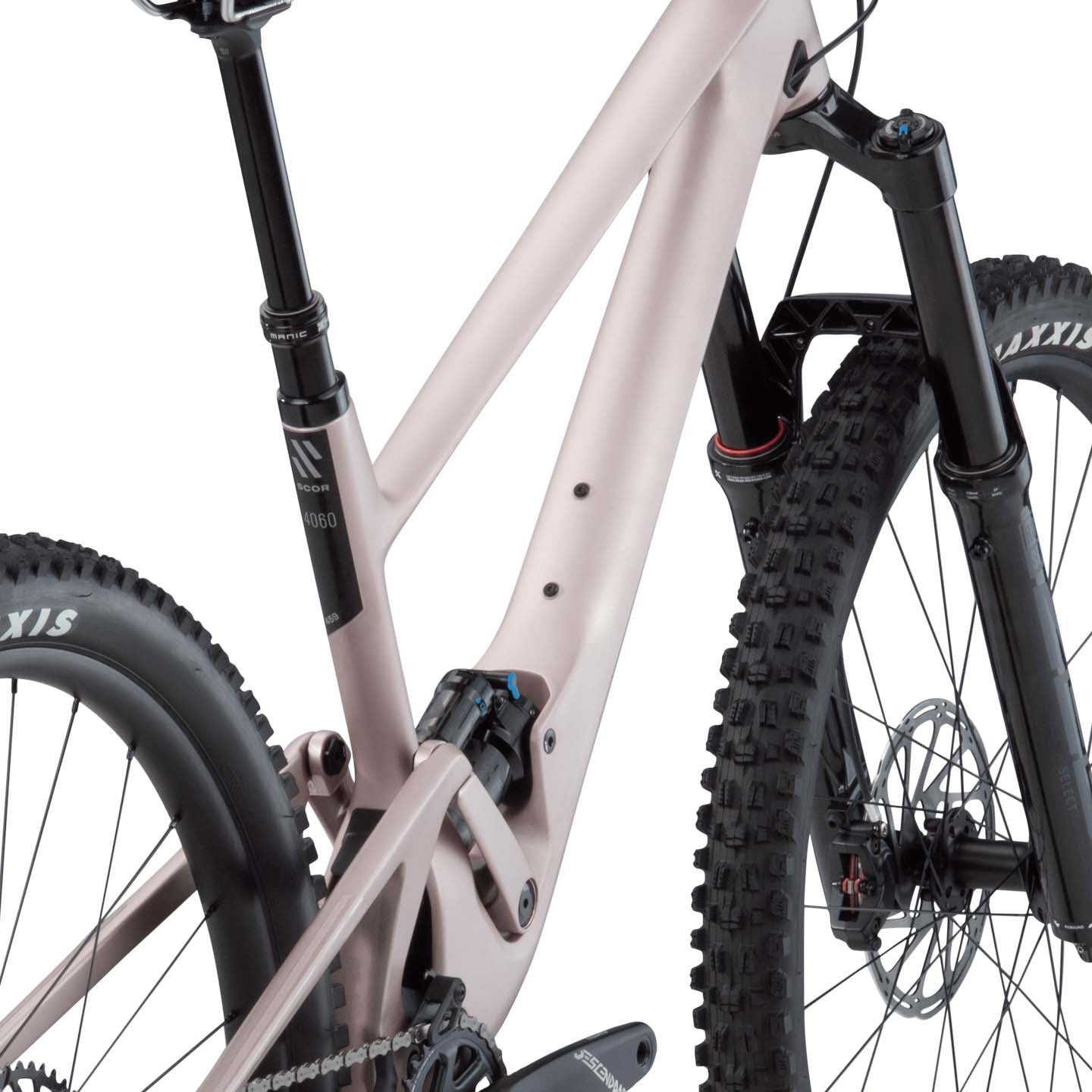

Full Carbon Frame

Designed for feel, engineered with precision. Expertly laid up high-quality composites make for a frame that is light, stiff and strong enough to shrug off drops, bails and fails. Guided internal cable routing means its beauty is more than skin deep.

Options

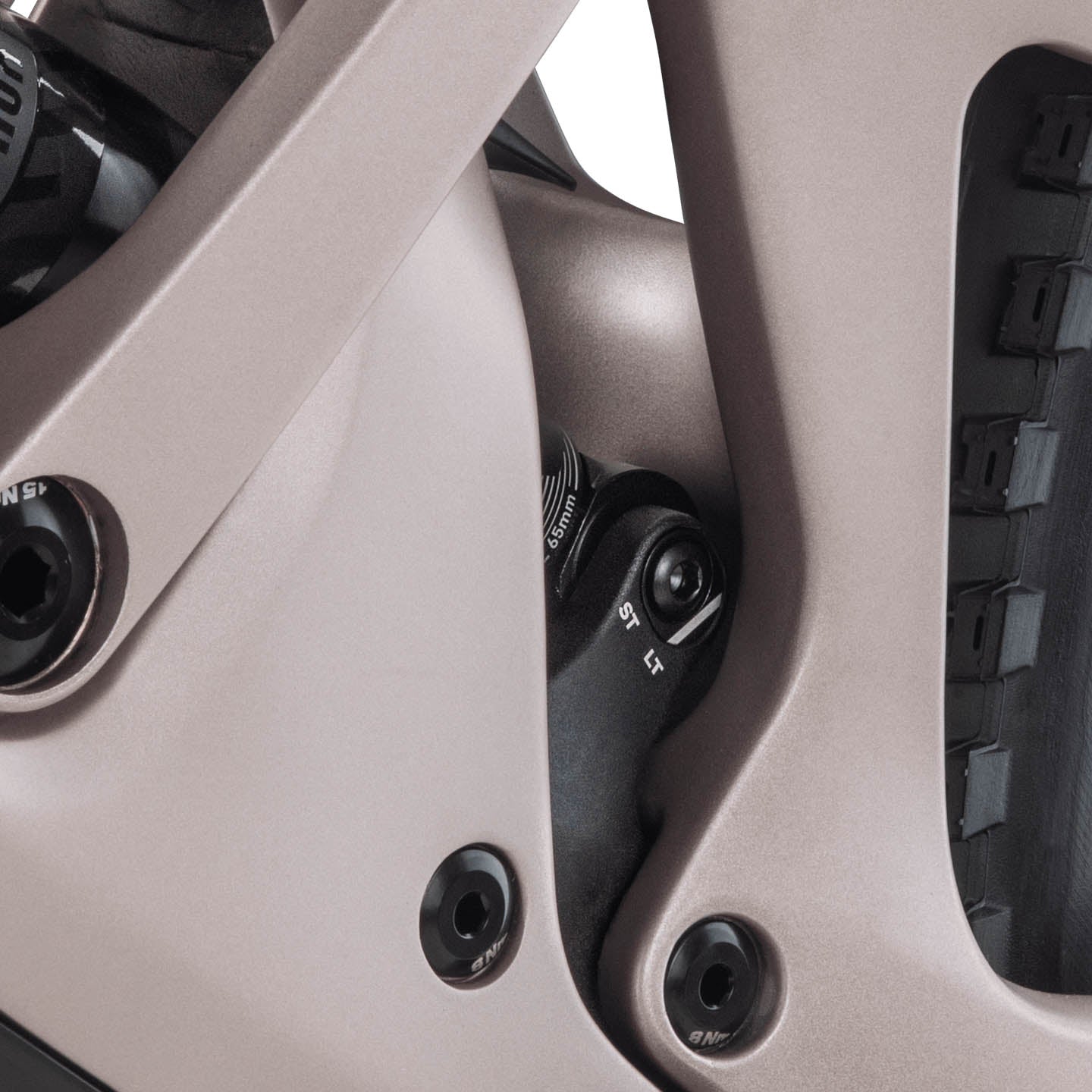

One frame, two travel options. Choose from 160mm or 140mm of rear travel just by changing the rear shock, either way a flip-chip and stealth angle-adjust headset mean you won’t be compromising on geometry.

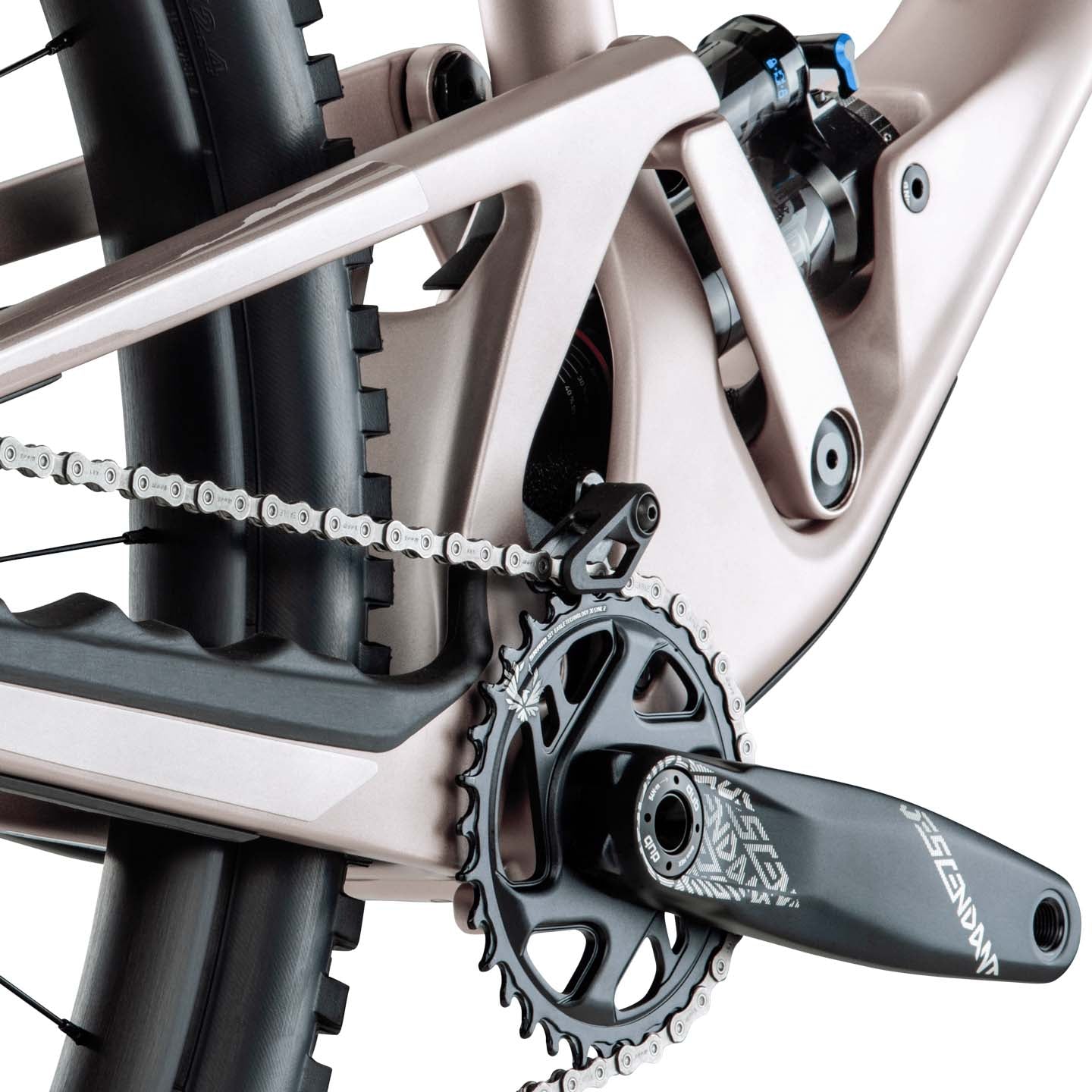

Superior Suspension

Our lower-link activated virtual pivot suspension design is supple off the top for all time grip with progressive support for when you go all too deep. Smart design keeps things stiff, low and air or coil shock compatible.

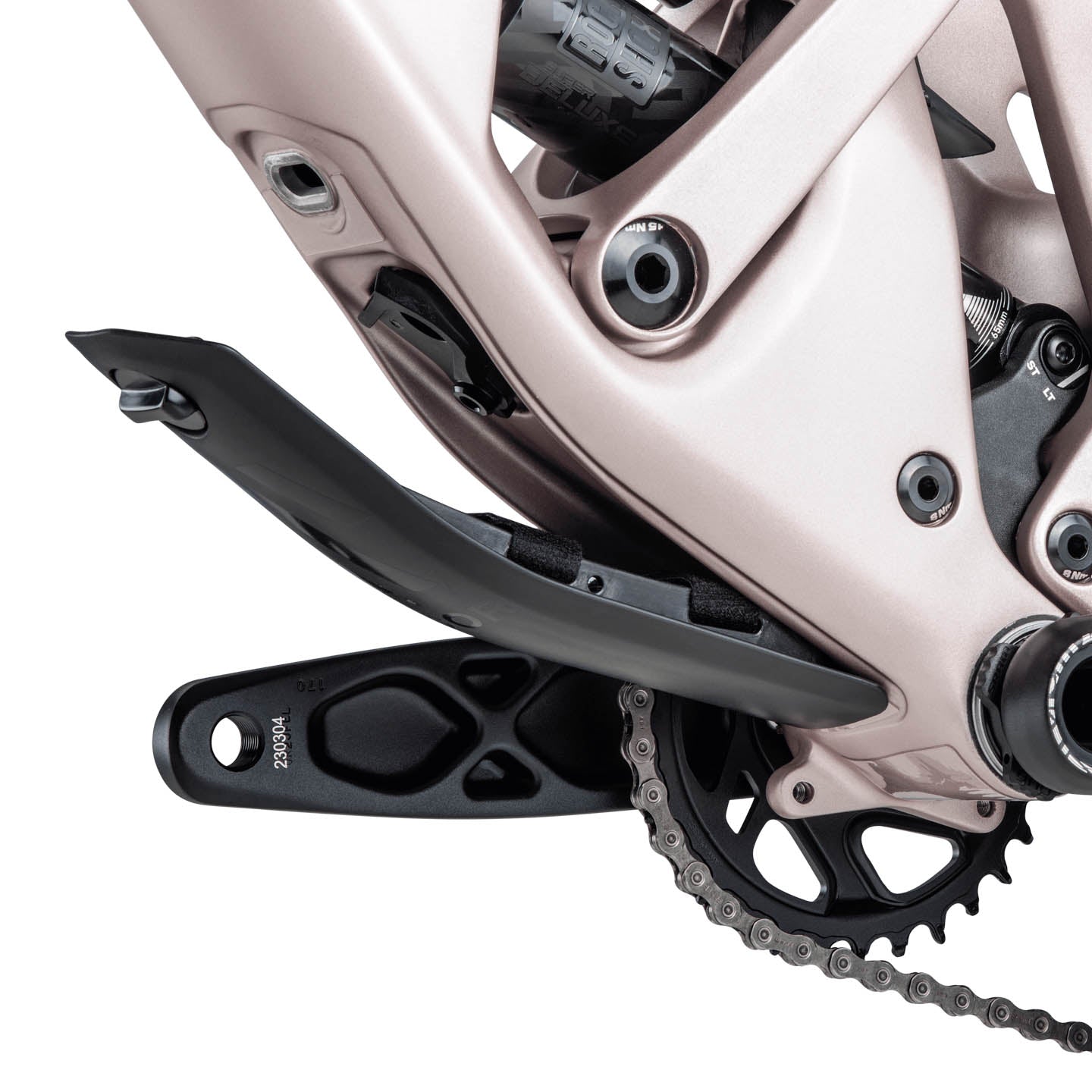

Stash Box

Mechanicals happen, but they don’t have to ruin your ride. With a spare Universal Derailleur Hanger (SRAM UDH) included and enough space for a multitool and tire plugs, the downtube stash box keeps your trailside essentials on hand. Ride on.

Technical Details

Frameset

Fork:
RockShox ZEB Select RC2 | 170mm Travel | 44mm Rake

Suspension

Front Suspension:
RockShox ZEB Select RC2 | 170mm Travel | 44mm Rake

Rear Suspension:
RockShox Super Deluxe Select+ RT Hydraulic Bottom Out | 205 x 65mm Trunnion

Cockpit

Stem:
SCOR Alloy Stem | 31.8mm Bar Bore | 35 mm Length | 0° Angle

Grips:
VP VPG-125A

Seat

Seatpost:
X-Fusion Manic | S 125mm | M 150mm | L / XL 170mm Travel

Saddle:
WTB Silverado Medium Steel SL

Drivetrain

Crankset:
SRAM Descendant 6K Eagle | 170 mm Length

Chainrings:
32T

Cassette:
SRAM NX PG-1230 Eagle

Cassette Size:
11-50T

Chain:
SRAM NX Eagle

Rear Derailleur:
SRAM NX Eagle

Shifters:
SRAM NX Eagle Trigger

Gears:
1 x 12

Bottom Bracket:
DUB Interface

Brakes

Brake Levers / Calipers:
SRAM Code R

Rotors:
SRAM Centerline | 6-Bolt

Rotor Size (F/R):
200mm

Wheels

Hubs (F/R):
XDX-530 | 28 Spokes | Sealed Cartridge Bearings

Tires:
Maxxis Assegai 29 x 2.5" 3C MaxxGrip Exo+ TR (F) | Maxxis Dissector 29 x 2.4" 3C MaxxTerra DD TR (R)

Tubeless Information:
Tubeless Ready Rims | Tubetype Tires

Additional Information

Tire Clearance:
Width: 64mm | Diameter: 750mm

ASTM Classification:
Level 4

System Weight Limit:
120kg

General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)

Size	S	M	L	XL
Rider Height	155 - 170	165 - 180	175 - 190	185 - 200
BB Drop (SLACK)	21	21	21	21
BB Drop (STEEP)	18	18	18	18
BB Height (SLACK)	348	348	348	348
BB Height (STEEP)	351	351	351	351
Chainstay	432	432	432	432
Fork Length	580	580	580	580
Fork Rake	44	44	44	44
Front Center (SLACK)	773	798	823	853
Front Center (STEEP)	761	785	810	840
Head Tube	87	99	115	127
HT Angle (SLACK)	63.8	63.8	63.8	63.8
HT Angle (STEEP)	65	65	65	65
Reach (SLACK)	435	459	485	515
Reach (STEEP)	431	456	481	511
Seat Tube	400	425	440	470
ST Angle @750mm Saddle Height (SLACK)	76.5	76.5	76.5	76.5
ST Angle @750mm Saddle Height (STEEP)	76	76	76	76
ST Angle Actual (SLACK)	69	69	69	69
ST Angle Actual (STEEP)	68.5	68.5	68.5	68.5
ST Angle Effective (SLACK)	77.9	77.9	77.9	77.9
ST Angle Effective (STEEP)	77.4	77.4	77.4	77.4
Stack (SLACK)	601	612	626	637
Stack (STEEP)	603	615	629	640
Stand Over Height (80 in Front of BB)	759	771	775	791
Stand Over Height (Lowest Point)	722	731	739	749
Top Tube (SLACK)	562	590	621	655
Top Tube (STEEP)	564	592	623	657
Wheelbase (SLACK)	1206	1230	1255	1285
Wheelbase (STEEP)	1193	1217	1242	1272

SCOR 4060 Shock Compatibility EN
SCOR 4060 Frame Size Guide EN
SCOR 4060 User Manual EN

4060 LT NX
