Name: 4060 Z LT GX
Brand: SCOR
SKU: 30005872
Price: 7599.0 CHF
Availability: InStock

Root Beer

160mm Rear / 170mm Front Travel, 29” Wheels
Fox 38 Factory / Float X Factory Suspension
SRAM GX Drivetrain, SRAM Code RSC Brakes

CHF 8,999.00 CHF 7,599.00

Tax included.

SKU: 30005872

Size

In stock, ready to ship
Inventory on the way

Compatible Parts & Accessories

Add a Shock

Shipped to your local bike shop

Check availability within our Retailer Network

[{"id":48080554230092,"title":"S","option1":"S","option2":null,"option3":null,"sku":"30005872","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"4060 Z LT GX - S","public_title":"S","options":["S"],"price":759900,"weight":32000,"compare_at_price":899900,"inventory_management":"shopify","barcode":"7630906512951","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":48080554918220,"title":"M","option1":"M","option2":null,"option3":null,"sku":"30005873","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"4060 Z LT GX - M","public_title":"M","options":["M"],"price":759900,"weight":32000,"compare_at_price":899900,"inventory_management":"shopify","barcode":"7630906512944","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":48080555213132,"title":"L","option1":"L","option2":null,"option3":null,"sku":"30005874","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"4060 Z LT GX - L","public_title":"L","options":["L"],"price":759900,"weight":32000,"compare_at_price":899900,"inventory_management":"shopify","barcode":"7630906512937","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":48080555802956,"title":"XL","option1":"XL","option2":null,"option3":null,"sku":"30005875","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"4060 Z LT GX - XL","public_title":"XL","options":["XL"],"price":759900,"weight":32000,"compare_at_price":899900,"inventory_management":"shopify","barcode":"7630906512920","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

With the power to play harder and the capacity to take you further the 4060 Z LT GX serves up the gnarliest trails at a lightning pace. An enduro bike with extra e, this is the bike for those looking to scale the toughest climbs and have energy in reserve to charge the descents. A full-carbon frame, top-tier suspension and baller benchmark component build leave compromise choking on its dust.

Technology

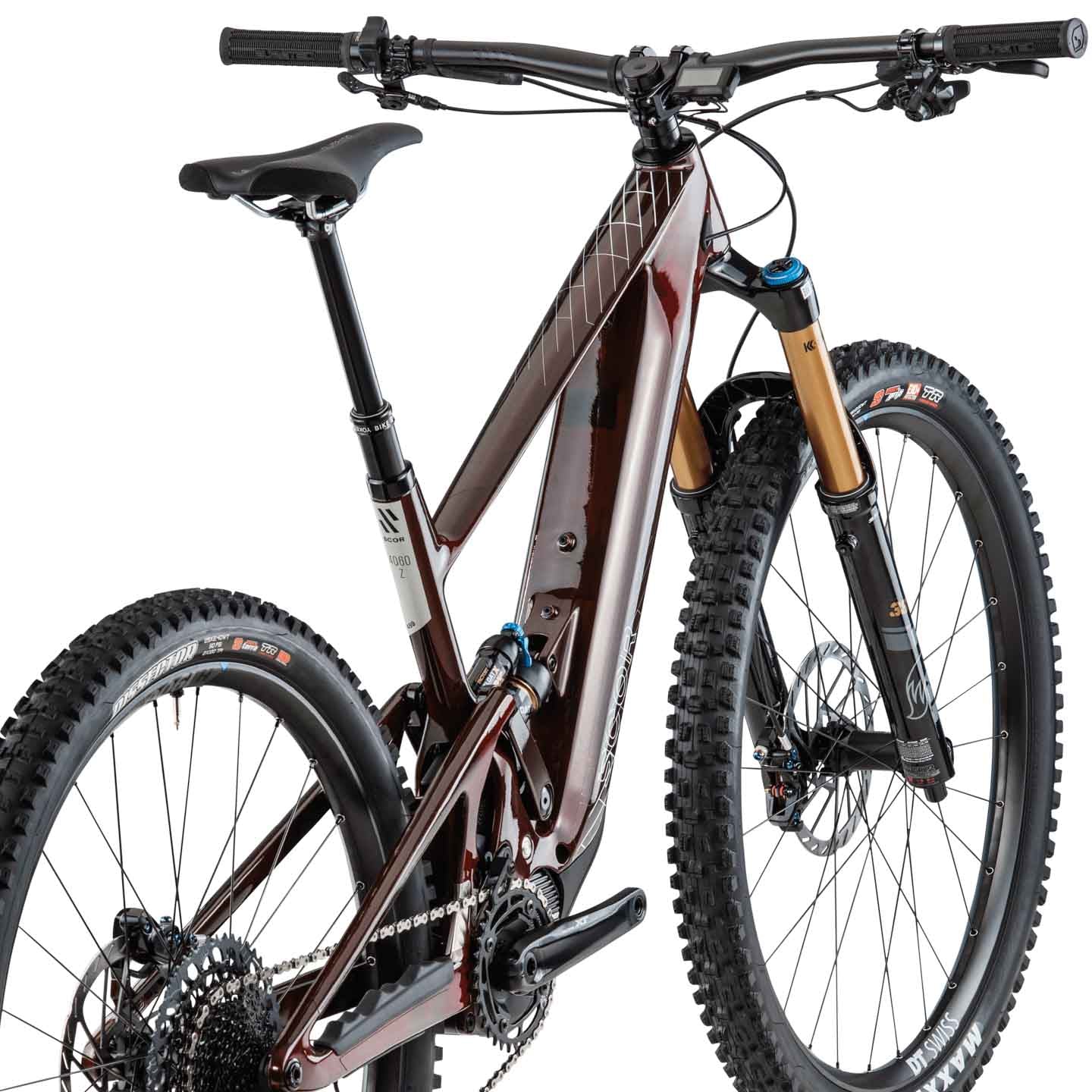

No-Compromise Geometry

Adding a motor and battery shouldn’t overwhelm the ride experience, it should enhance it. Using the exact same geometry as our unassisted bikes we’ve kept the same playful feel and dynamic ability but given it an electric boost.

Power Play

Shimano’s latest EP801 motor packs a mighty 85Nm of torque into a svelte 2.6kg package. Compact dimensions and clever packaging keep the center of gravity down low, exactly where it should be.

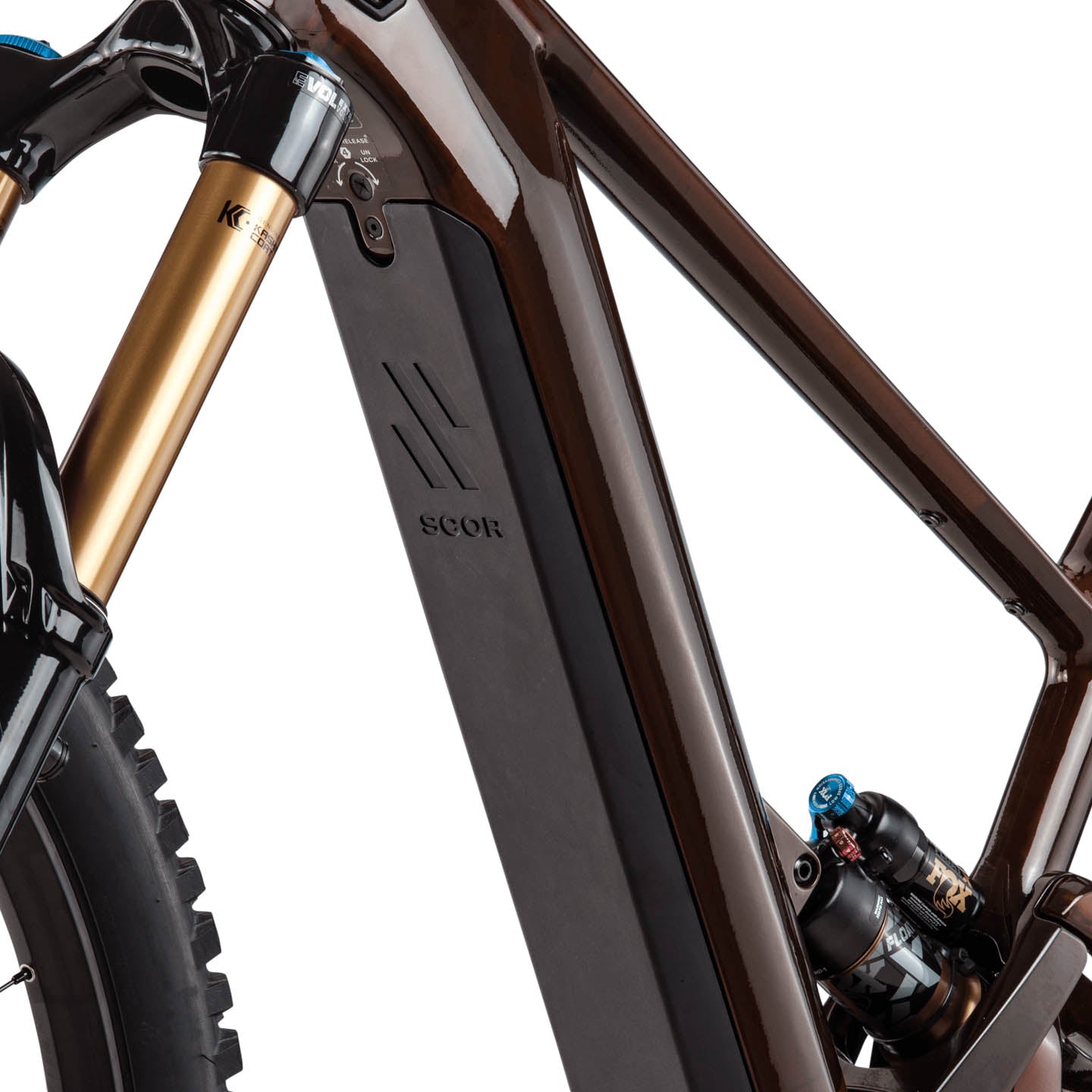

Battery Included

The slimline Darfon 720Wh battery lets you ride further and play harder for longer. Approved and serviced by Shimano all you have to do is make sure it’s charged for your next ride.

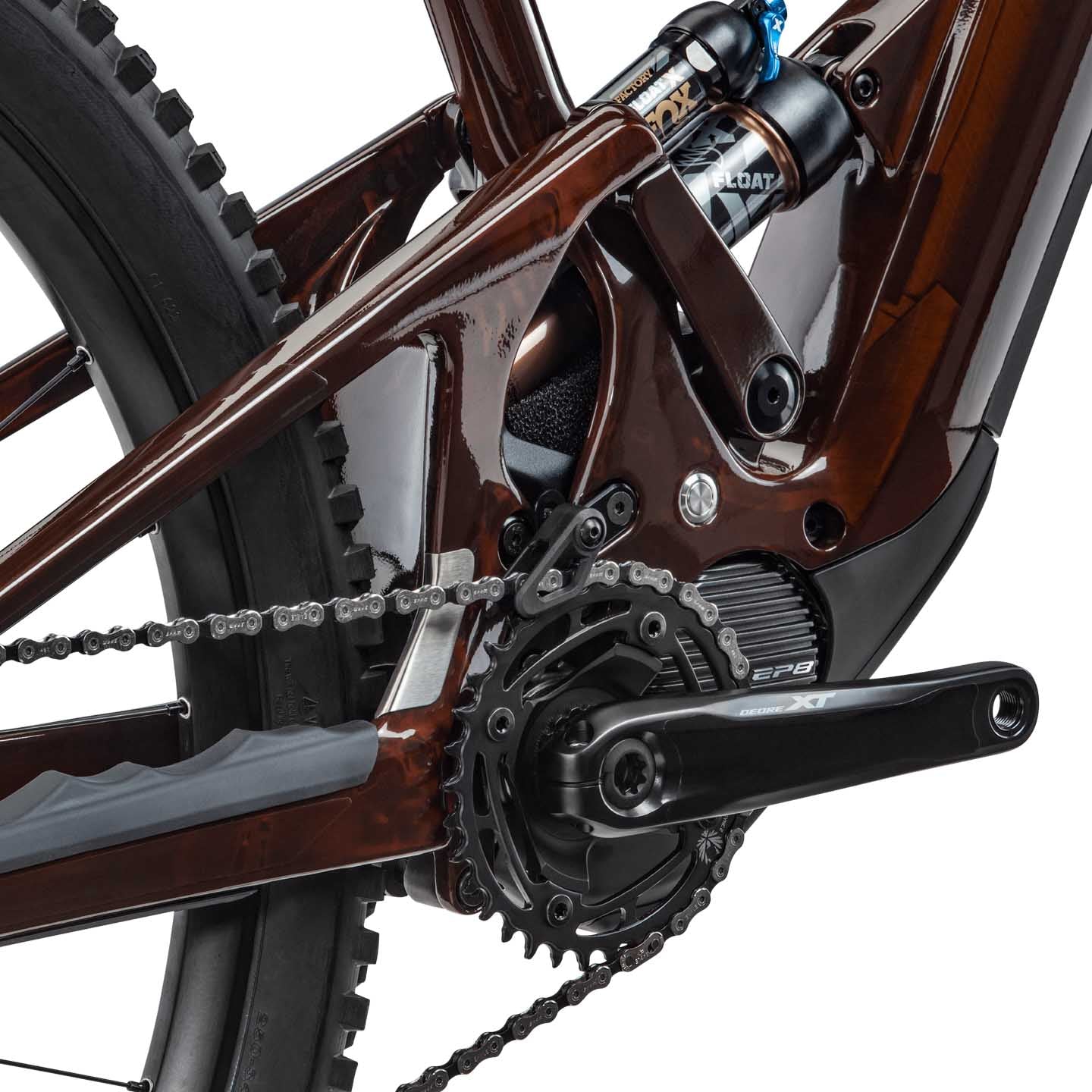

Superior Suspension

Our lower-link activated virtual pivot suspension design is supple off the top for all time grip with progressive support for when you go all too deep. Smart design keeps things stiff, low and air or coil shock compatible.

Technical Details

Frameset

Frame:
SCOR 4060 Z Full Carbon Frame | Lower-Link Driven Instant Center Linkage | 140 / 160mm Rear Travel | Boost 148 | SRAM UDH

Fork:
Fox 38 Factory GRIP2 | 170mm Travel | 44mm Rake

Suspension

Front Suspension:
Fox 38 Factory GRIP2 | 170mm Travel | 44mm Rake

Rear Suspension:
Fox Float X Factory | 210 x 55mm

E-System

Drive Unit:
SHIMANO Steps EP8 DU-EP801

Battery Pack:
Darfon 36V | SHIMANO Steps service included | 720 Wh

Display:
SHIMANO Steps EP8 Wireless Cycle Computer SC-EM800

Drive Unit Control:
SHIMANO Steps EP8 Left Switch Unit SW-EM800-L

Charger:
Darfon Smart Plus 100-240V | 4A | EU

Cockpit

Stem:
Burgtec Enduro MK3 | 31.8mm Bar Bore | 35mm Length | 0° Angle

Grips:
Burgtec Bartender Pro

Seat

Seatpost:
Bikeyoke Divine | S 125mm | M / L 160mm | XL 185mm Travel | Triggy Alpha lever

Saddle:
WTB Silverado Medium Cromoly SL

Drivetrain

Crankset:
SHIMANO (FC-M8150) | 165mm Length

Chainrings:
34T

Cassette:
SRAM GX XG-1275 Eagle

Cassette Size:
10-52T

Chain:
SRAM GX Eagle

Rear Derailleur:
SRAM GX Eagle

Shifters:
SRAM GX Eagle Trigger

Gears:
1 x 12

Brakes

Brake Levers / Calipers:
SRAM Code RSC

Rotors:
SRAM Centerline | 6-Bolt

Rotor Size (F/R):
220 / 200mm

Wheels

Rims:
DT Swiss H 1900 SPLINE | 30mm Internal Width | Tubeless ready

Hubs (F/R):
DT Swiss 370 | Ratchet LN Freehub | Straightpull Spoke Interface | Boost spacing

Tires:
Maxxis Assegai 29 x 2.5" 3C MaxxGrip Exo+ TR (F) | Maxxis Dissector 29 x 2.4" 3C MaxxTerra DD TR (R)

Tubeless Information:
Tubeless Ready Rims | Tubetype Tires

Additional Information

Tire Clearance:
Width: 64mm | Diameter: 750mm

ASTM Classification:
Level 4

System Weight Limit:
130kg

General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)

Size	S	M	L	XL
Rider Height	155 - 170	165 - 180	175 - 190	185 - 200
BB Drop (SLACK)	21	21	21	21
BB Drop (STEEP)	18	18	18	18
BB Height (SLACK)	348	348	348	348
BB Height (STEEP)	351	351	351	351
Chainstay	432	432	432	432
Fork Length	580	580	580	580
Fork Rake	44	44	44	44
Front Center (SLACK)	773	798	823	853
Front Center (STEEP)	761	785	810	840
Head Tube	87	99	115	127
HT Angle (SLACK)	63.8	63.8	63.8	63.8
HT Angle (STEEP)	65	65	65	65
Reach (SLACK)	435	459	485	515
Reach (STEEP)	431	456	481	511
Seat Tube	400	425	440	470
ST Angle @750mm Saddle Height (SLACK)	76.5	76.5	76.5	76.5
ST Angle @750mm Saddle Height (STEEP)	76	76	76	76
ST Angle Actual (SLACK)	69	69	69	69
ST Angle Actual (STEEP)	68.5	68.5	68.5	68.5
ST Angle Effective (SLACK)	77.9	77.9	77.9	77.9
ST Angle Effective (STEEP)	77.4	77.4	77.4	77.4
Stack (SLACK)	601	612	626	637
Stack (STEEP)	603	615	629	640
Stand Over Height (80 in Front of BB)	759	771	775	791
Stand Over Height (Lowest Point)	722	731	739	749
Top Tube (SLACK)	562	590	621	655
Top Tube (STEEP)	564	592	623	657
Wheelbase (SLACK)	1206	1230	1255	1285
Wheelbase (STEEP)	1193	1217	1242	1272
