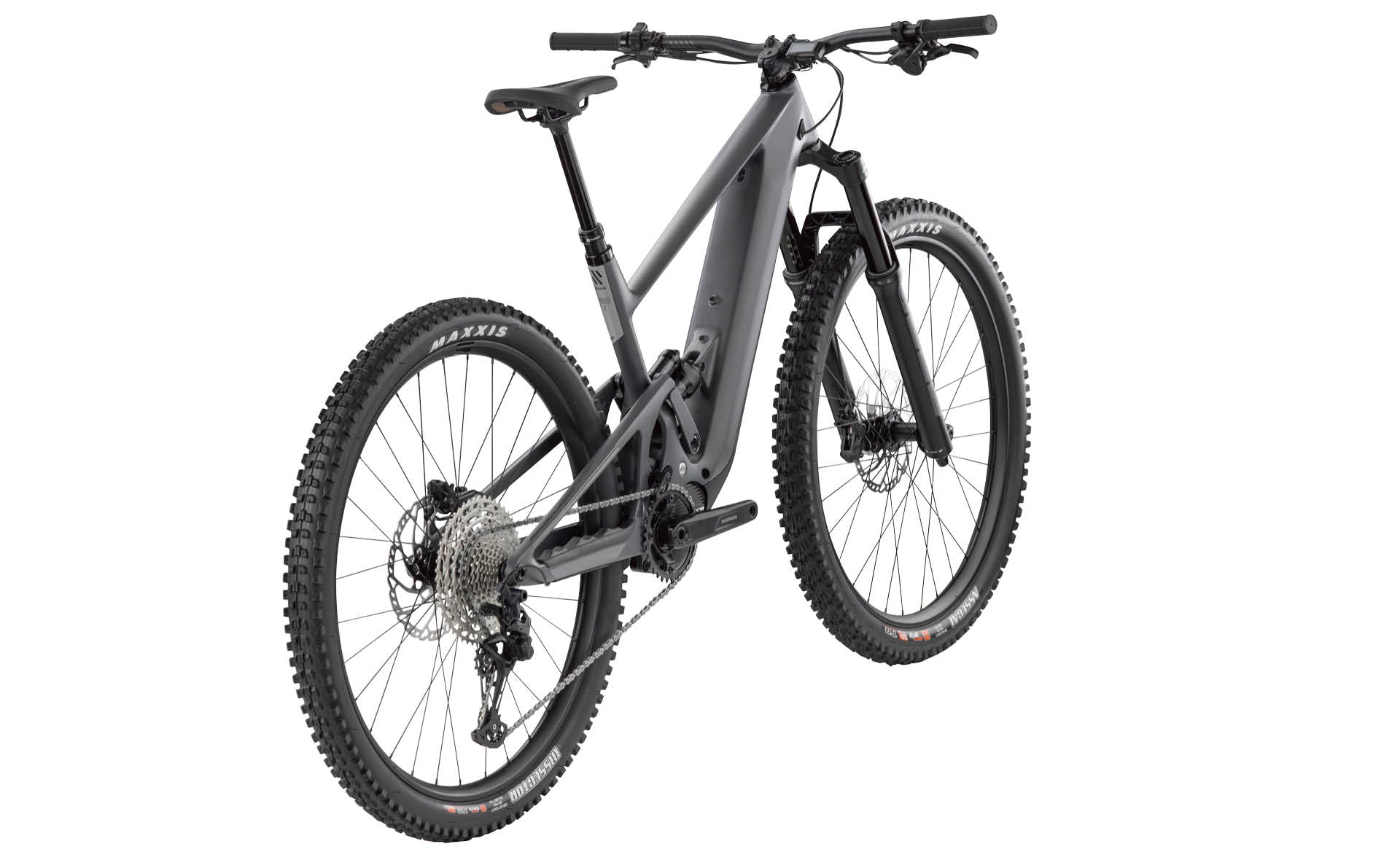

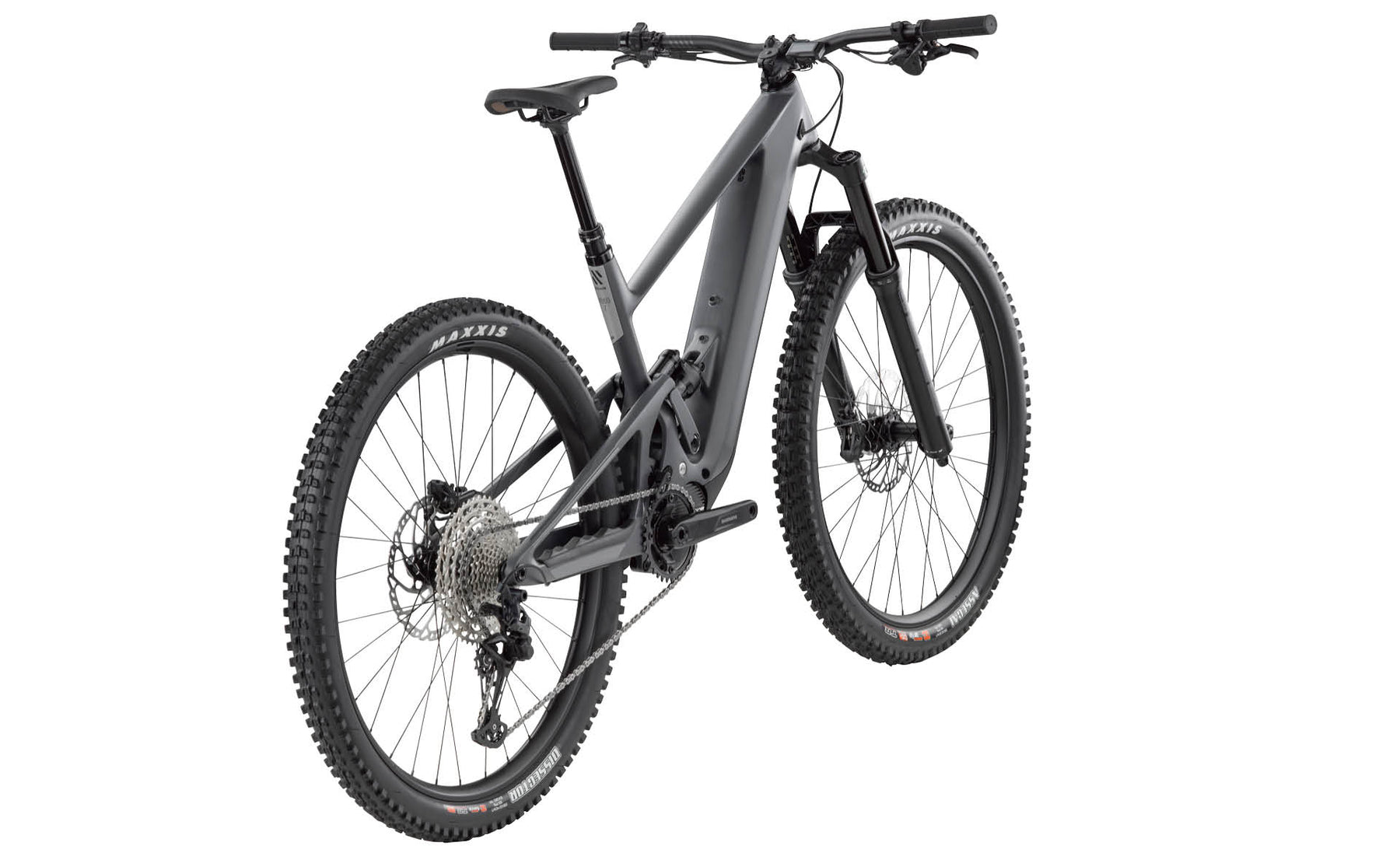

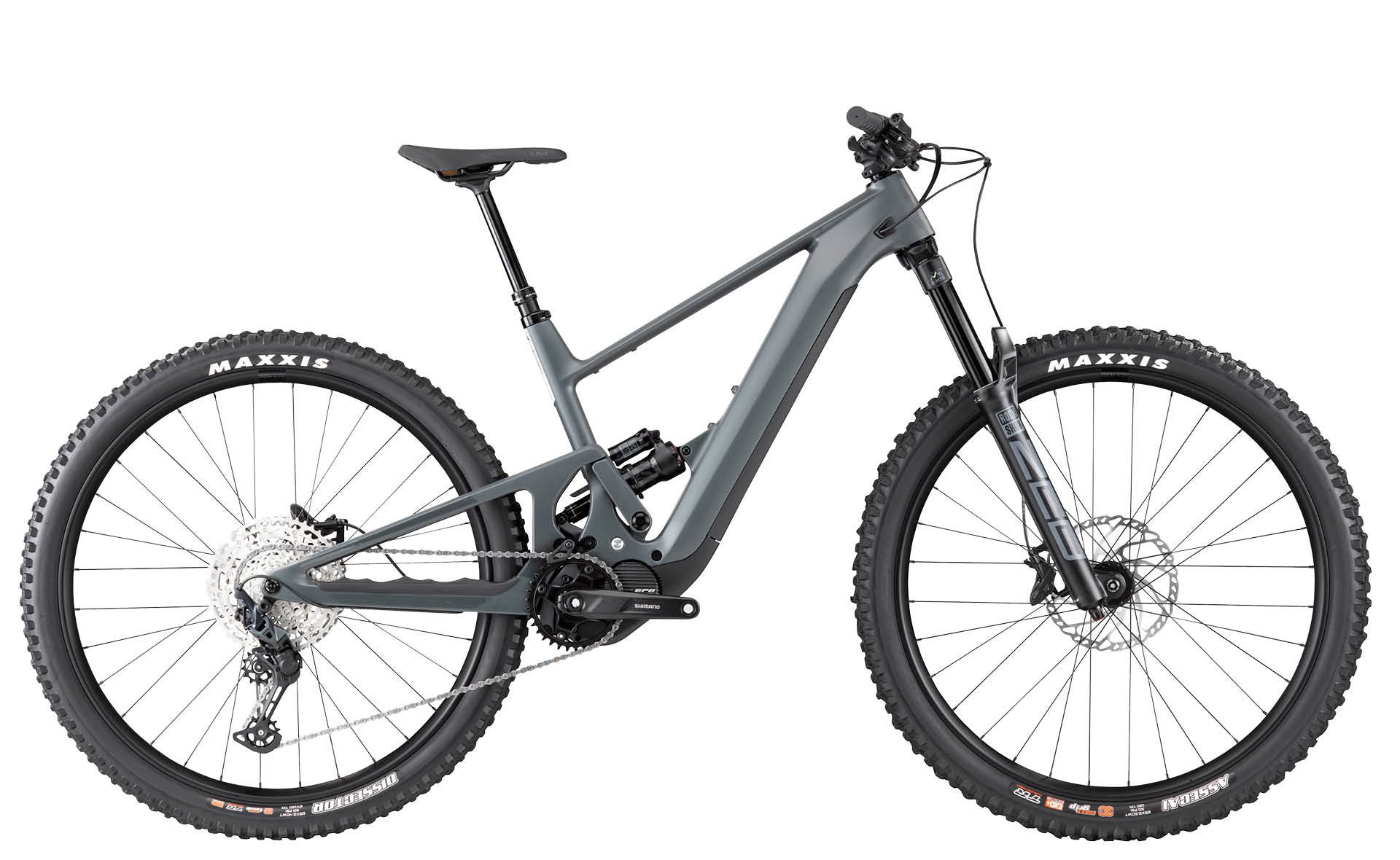

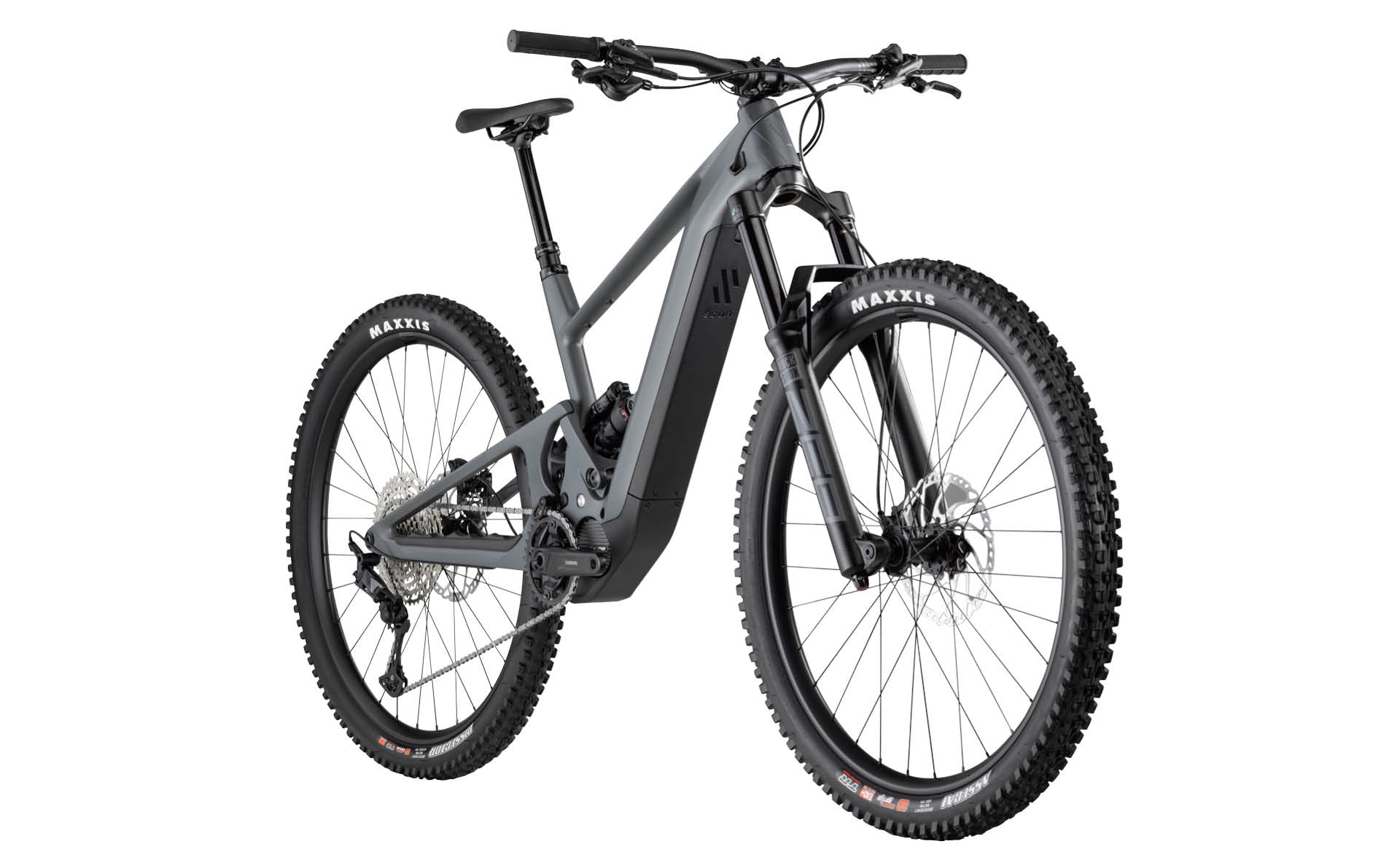

4060 Z ST SLX

Slate
140mm Rear / 150mm Front Travel, 29” Wheels
RockShox ZEB Select / RockShox Super Deluxe Select Suspension
Shimano SLX Drivetrain, Shimano Deore Brakes
CHF 7,499.00
CHF /
Tax included.
SKU: 30003488
Size
  • In stock, ready to ship
  • Inventory on the way

Add a Shock
  • Shipped to your local bike shop
  • FAQ
A trail bike that mixes zip with zap, the 4060 Z ST SLX makes no excuses for leaving you buzzing. Packing a powerful punch on the ups and the downs it’s built for a good time and a long time. A full-carbon frame, quality suspension and a bulletproof selection of components mean you’re good to go from the get-go.

Technical Details

Frameset

Frame:
SCOR 4060 Z Full Carbon Frame | Lower-Link Driven Instant Center Linkage | 140 / 160mm Rear Travel | Fully Guided Internal Cable Routing | Boost 148 | SRAM UDH

Fork:
RockShox ZEB | 150mm Travel | 44mm Rake

Suspension

Front Suspension:
RockShox ZEB | 150mm Travel | 44mm Rake

Rear Suspension:
RockShox Super Deluxe Select | Rebound adjust

E-System

Drive Unit:
SHIMANO Steps EP8 DU-EP800

Battery Pack:
Darfon 36V | SHIMANO Steps service included | 720 Wh

Display:
SHIMANO Steps EP8 Wireless Cycle Computer SC-EM800

Drive Unit Control:
SHIMANO Steps EP8 Left Switch Unit SW-EM800-L

Charger:
Darfon Smart Plus 100-240V | 4A | EU

Cockpit

Stem:
SCOR Alloy Stem | 3D Forged | 31.6mm Bar Bore | 35mm Length | 0° Angle

Handlebar:
SCOR Alloy Bar | 31.8mm Clamp | 800mm Wide | 20mm Rise | 5° Upsweep | 9° Backsweep

Grips:
VP VPG-125A

Seat

Seatpost:
X-Fusion Manic | S 125mm | M 150mm | L / XL 170mm Travel

Saddle:
Fizik Terra Alpaca X5

Drivetrain

Crankset:
SHIMANO (FC-EM600) | 165mm Length

Chainrings:
34T

Cassette:
SHIMANO Deore (CS-M6100-12)

Cassette Size:
10-51T

Chain:
SHIMANO CN-M6100

Rear Derailleur:
SHIMANO Deore SLX (RD-M7100)

Shifters:
SHIMANO Deore SLX (SL-M7100-R)

Gears:
1 x 12

Brakes

Brake Levers / Calipers:
SHIMANO Deore | BL-M6100 Levers | BR-M6120 Calipers

Rotors:
SHIMANO SM-RT66

Rotor Size (F/R):
203mm

Wheels

Rims:
XDH-130 | 32 Spokes | 6061-T6 Alloy | Welded Joint | 30mm Internal Width | Tubeless ready

Hubs (F/R):
XDH-130 | 32 Spokes | Sealed Cartridge Bearings

Tires:
Maxxis Assegai 29 x 2.5" 3C MaxxGrip Exo+ TR (F) | Maxxis Dissector 29 x 2.4" 3C MaxxTerra DD TR (R)

Tubeless Information:
Tubeless Ready Rims | Tubetype Tires

Additional Information

Tire Clearance:
Width: 64mm | Diameter: 750mm

Weight without Pedals:
22.80kg

ASTM Classification:
Level 4

System Weight Limit:
130kg

Size S M L XL
Rider Height 155 - 170 165 - 180 175 - 190 185 - 200
BB Drop (SLACK) 29 29 29 29
BB Drop (STEEP) 27 27 27 27
BB Height (SLACK) 340 340 340 340
BB Height (STEEP) 342 342 342 342
Chainstay 436 436 436 436
Fork Length 560 560 560 560
Fork Rake 44 44 44 44
Front Center (SLACK) 765 790 815 845
Front Center (STEEP) 752 777 802 832
Head Tube 87 99 115 127
HT Angle (SLACK) 64.5 64.5 64.5 64.5
HT Angle (STEEP) 65.5 65.5 65.5 65.5
Reach (SLACK) 440 465 490 520
Reach (STEEP) 436 461 484 516
Seat Tube 400 425 440 470
ST Angle @750mm Saddle Height (SLACK) 77 77 77 77
ST Angle @750mm Saddle Height (STEEP) 76.5 76.5 76.5 76.5
ST Angle Actual (SLACK) 69.4 69.4 69.4 69.4
ST Angle Actual (STEEP) 69 69 69 69
ST Angle Effective (SLACK) 78.5 78.5 78.5 78.5
ST Angle Effective (STEEP) 78 78 78 78
Stack (SLACK) 597 608 622 633
Stack (STEEP) 599 611 625 636
Stand Over Height (80 in Front of BB) 752 764 768 784
Stand Over Height (Lowest Point) 714 723 731 741
Top Tube (SLACK) 560 589 620 654
Top Tube (STEEP) 561 590 621 655
Wheelbase (SLACK) 1198 1223 1248 1278
Wheelbase (STEEP) 1185 1210 1235 1265
